Fuel Hose Reel Guide: Hose ID, Length and Spring Rewind vs Manual Rewind

Choosing a fuel hose reel looks straightforward until you start matching it to the rest of your dispensing setup. Get the hose internal diameter wrong and you throttle the flow rate of an otherwise capable pump. Get the length wrong and operators either fight a hose that won't reach the tank, or trip over metres of slack coiled on the ground.

Then there's the rewind mechanism. Spring rewind reels snap the hose back automatically, which matters on sites with constant vehicle turnover. Manual rewind reels cost less and suit lower-frequency use, but someone has to wind every metre back by hand.

This guide walks through hose ID, length selection, and the spring versus manual rewind decision, with reference to genuine PIUSI hose reels used across agriculture, transport, construction and workshop sites in Australia. By the end you'll know exactly which fuel hose reel spec matches your pump, your flow rate, and how often your team refuels.

Why Hose Internal Diameter Determines Your Real-World Flow Rate

Hose internal diameter (ID) is the single biggest factor limiting how much fuel actually reaches the nozzle, regardless of what your pump is rated to deliver. A pump rated at 100 L/min pushing fuel through a 19mm ID hose will never hit that figure at the nozzle tip. Friction loss inside a narrower bore chokes flow, especially over longer hose runs.

PIUSI hose reels are available in two common bore sizes for fuel and AdBlue applications: 19mm ID and 25mm ID. The 19mm option suits pump outputs up to around 50-70 L/min and is standard on most AdBlue hose reel setups, including the PIUSI AdBlue hose reel, 8m x 19mm ID View Product and the 15m x 19mm ID version View Product.

For diesel transfer above 70 L/min, step up to a 25mm ID hose reel to avoid restricting flow. The PIUSI 25mm ID x 10m hose reel View Product and the heavy duty 25mm ID x 15m version View Product are built for higher-volume pumps like the PIUSI E120 or ST200. Matching hose ID to pump output is not optional if you want the flow rate on the datasheet to show up at the bowser.

How Much Hose Length Do You Actually Need?

Length decisions come down to where your dispensing point sits relative to the vehicles or equipment being fuelled. Too short and operators can't reach fuel tanks on larger trucks or machinery without repositioning the vehicle. Too long and you're managing excess hose that drags on the ground, picks up grit, and wears faster.

Common fuel hose reel lengths run from 8m through to 15m. An 8m reel suits compact workshop bays or single-bay fuel points where vehicles pull up close to the dispensing cabinet. A 15m reel gives you reach across a wider yard, multiple bowser bays, or larger vehicles like B-double prime movers where the fuel inlet sits well forward of a fixed pump location.

Longer hose runs also mean marginally higher pressure loss, which is another reason to keep hose ID matched to length. A 15m run in 19mm ID will lose more flow to friction than the same length in 25mm ID, so if you're running a longer reel, size the bore up if your pump can support it.

Spring Rewind vs Manual Rewind: Which Fuel Hose Reel Fits Your Site?

This is the decision most buyers get stuck on. Spring rewind reels use an internal tension spring to automatically retract the hose once the operator releases it, similar to a retractable extension cord. Manual rewind reels require the operator to physically wind a crank handle to bring the hose back onto the drum.

Spring rewind saves time and keeps hose off the ground between uses, which matters on sites with high refuelling frequency, such as fleet depots or busy workshop bays. The trade-off is a higher unit cost and, on some models, more moving parts to maintain. The PIUSI spring rewind hose reel, 19mm ID x 15m View Product is a common fit for AdBlue and lower-flow diesel setups where quick hose retrieval speeds up turnaround between vehicles.

Manual rewind reels cost less upfront and have a simpler mechanism, which suits lower-frequency use like farm workshops, standby generators, or single-vehicle fuel points where the hose isn't being extended and retracted dozens of times a day. The 25mm ID x 10m and 25mm ID x 15m heavy duty reels are typically manual wind, built for durability over convenience.

Matching Your Hose Reel to Pump Flow Rate

A hose reel doesn't operate in isolation. It's one component in a dispensing chain that starts at the tank, runs through the pump, meter, filter and nozzle, and ends at the hose reel delivering fuel to the vehicle. Sizing the reel against your pump's rated output keeps that whole chain performing as intended.

For lower-volume 12V or 24V DC transfer, a pump like the PIUSI BP3000, a self-priming 12V/24V vane pump rated at 50 L/min View Product, pairs comfortably with a 19mm ID hose reel over shorter to mid-range lengths. Step up to 240V AC pumps like the PIUSI E120, rated at 100 L/min View Product or the PIUSI ST200 at 200 L/min View Product, and a 25mm ID hose reel becomes necessary to avoid choking flow.

At the high end, the PIUSI E300, delivering 550 L/min View Product, is typically installed with fixed bulk delivery hose rather than a reel, since flow at that rate exceeds what a standard reel-mounted hose is designed to carry. Pair mid-range pumps with a metered nozzle such as the PIUSI A120 automatic diesel nozzle, 120 L/min with swivel View Product and a K44 flow meter View Product so your hose reel, meter and nozzle all sit within the same flow bracket. If your site runs particulate-heavy diesel, add a PIUSI 10 micron DN25 particulate filter rated at 70 L/min View Product ahead of the reel to protect the nozzle and meter downstream. You can browse the full range of flow meters and filters to complete the chain.

Fuel Hose Reel Applications by Industry

Agriculture sites running mixed fleets of tractors, headers and utes typically favour a 15m, 25mm ID manual rewind reel paired with a 12V or 24V DC pump for off-grid paddock refuelling. Reach matters more than retraction speed when vehicles are spread across a yard.

Fleet transport depots with constant truck turnover benefit from spring rewind reels, since drivers refuelling multiple times a shift need the hose to retract cleanly without manual winding between each vehicle. A 19mm ID spring rewind reel paired with a metered dispensing setup keeps bay turnaround fast.

Construction and mining sites running heavier plant often pair a 25mm ID heavy duty reel with higher-output pumps like the E120 or ST200, since equipment tanks are larger and refuel less frequently but need higher flow when they do. Workshops handling both fuel and lubricant dispensing sometimes add an open hose reel for grease View Product alongside their fuel reel to cover both jobs from one dispensing area.

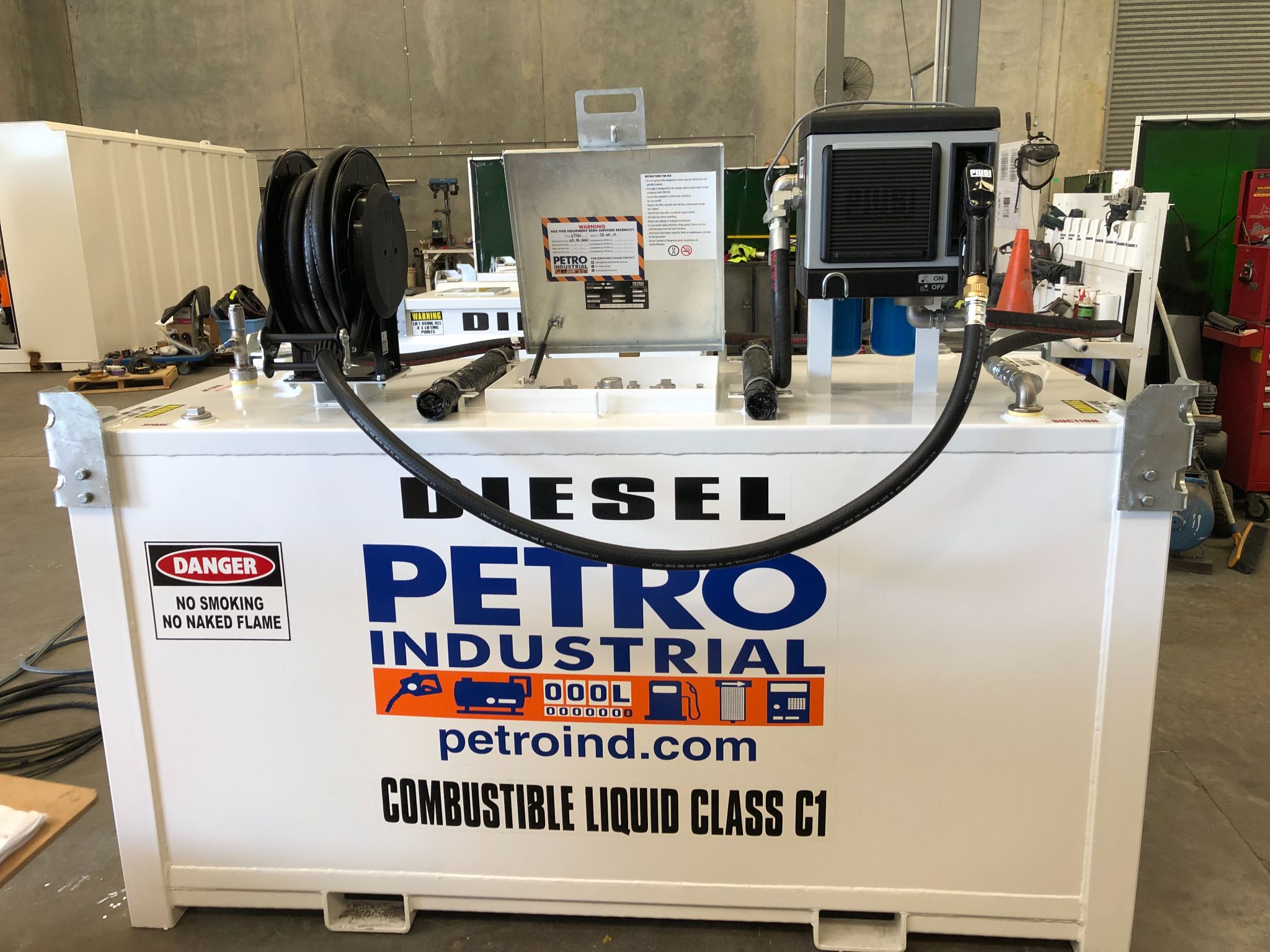

Where any of these sites run on-site bulk storage, a hose reel setup pairs naturally with PETRO Industrial self-bunded tanks and iPETRO fuel management, giving you tank-to-nozzle visibility over fuel dispensed through each reel. A PIUSI OCIO gauge View Product mounted on the tank keeps stock levels visible without walking out to check manually. Browse PIUSI gauges or the fuel monitoring systems range to see how tank-level data integrates with your dispensing setup.

What to Buy

For AdBlue dispensing on a busy depot, choose the PIUSI spring rewind hose reel, 19mm ID x 15m View Product paired with a 240V AdBlue pump. For a single-bay AdBlue point with lower turnover, the 8m x 19mm ID reel View Product keeps costs down without sacrificing reach.

For diesel transfer above 70 L/min, run a 25mm ID reel: the 10m version View Product for compact bays, or the 15m heavy duty reel View Product for larger yards and heavier plant. Pair either with a pump from the full range of PIUSI fuel pumps and a matching nozzle from the PIUSI nozzle collection.

If you're building a complete on-site refuelling station rather than a single dispensing point, look at PETRO Industrial self-bunded tanks with iPETRO monitoring so tank level, dispensing data and hose reel usage sit under one system.

Need help choosing the right setup? Contact the PIUSI Shop team for advice matched to your pump, flow rate and site layout.

FAQ

What hose ID do I need for a diesel transfer pump rated at 100 L/min?

Use a 25mm ID hose reel for pumps rated above 70 L/min, such as the PIUSI E120 at 100 L/min. A 19mm ID hose will restrict flow and reduce real-world dispensing speed regardless of pump output.

Is a spring rewind fuel hose reel worth the extra cost?

Spring rewind reels, like the PIUSI 19mm ID x 15m spring rewind model, are worth it on sites refuelling multiple vehicles per shift where fast hose retraction speeds up bay turnaround. For lower-frequency use, manual rewind reels do the job at lower cost.

Can I use an AdBlue hose reel for diesel?

PIUSI AdBlue hose reels use hose and seal materials specific to AdBlue's corrosive properties, so they shouldn't be repurposed for diesel. Use a dedicated diesel-rated hose reel such as the 25mm ID range instead.

How long should my fuel hose reel be for a fleet depot?

Most fleet depots run 15m reels to reach across multiple bays or larger trucks with forward-mounted fuel inlets. Smaller single-bay workshops can get by with an 8m to 10m reel.

Does hose length affect flow rate?

Yes. Longer hose runs increase friction loss, which reduces flow at the nozzle even with the same pump and hose ID. If you're running a 15m length, consider stepping up hose ID if your pump's flow rate supports it.
