AdBlue Crystallisation and Air Exposure: How to Protect Your Dispensing Equipment

Every operator running an AdBlue dispensing setup eventually deals with the same problem: white, crusty build-up around the nozzle spout, a sticky trigger mechanism, or a meter that starts under-reading. AdBlue crystallisation is the usual culprit, and it doesn't happen because the fluid is faulty. It happens because the equipment around it wasn't designed to keep air and moisture away from the diesel exhaust fluid at the point of dispensing.

This article isn't a chemistry lesson on why AdBlue crystallises. You already know that. What matters for your site is which pumps, nozzles, meters and filters actually stop crystallisation from wrecking seals, blocking flow paths, and shortening equipment life. You'll walk away knowing which PIUSI dispensing components are built for sealed AdBlue transfer, how they compare on flow rate and construction, and what a complete setup looks like when paired with a PETRO Industrial self-bunded tank.

Get this wrong and you're looking at nozzle replacements every six months, meters that drift out of calibration, and pumps that seize because crystals have worked into the vane chamber. Get it right and the same equipment runs for years with nothing more than routine filter changes.

Why AdBlue Crystallisation Damages Pumps, Nozzles and Meters

AdBlue crystallises when it's exposed to air for extended periods, particularly at the nozzle tip, in open fill points, or anywhere fluid sits stagnant in a hose or spout. The crystals are abrasive and hygroscopic: they scratch soft internal components and pull moisture from the surrounding air, compounding the problem.

The parts most at risk are the ones that touch fluid last: nozzle spouts, meter turbine wheels, and pump seals. Standard nozzles without an automatic shut-off leave a wet tip exposed to air after every fill, which is exactly where crystallisation starts. Pumps built with the wrong seal material (rather than stainless steel and Viton-compatible components rated for AdBlue) degrade faster once crystal particles start circulating through the vane chamber.

This is why PIUSI's AdBlue-specific range uses stainless steel wetted parts throughout: pump housings, meter bodies, and nozzle internals. It's not an arbitrary spec. It's the difference between a nozzle that lasts a season and one that lasts years on a busy fleet yard.

AdBlue Crystallisation: Sealed Systems vs Open Dispensing Points

The biggest variable in how fast crystallisation sets in is whether your dispensing point is sealed between uses or left open to atmosphere. A fully enclosed pump cabinet with an automatic nozzle and a dust cap will always outperform an open drum tap or a manual nozzle left hanging on a hook.

The table below compares common PIUSI AdBlue dispensing configurations against this exposure risk, so you can match the setup to how often the point is used and how it's stored between fills.

Automatic nozzles like the SB325 are the single biggest lever you can pull to reduce crystallisation risk. They shut off the moment the tank is full, so the spout doesn't sit dripping and exposed to air between fills the way a manual trigger nozzle does.

Choosing the Right AdBlue Pump and Nozzle Combination by Industry

Fleet transport depots running 20 to 50 vehicles a day need throughput and shouldn't be relying on gravity kits or hand pumps. The PIUSI AdBlue Pump 240V AC, 34 L/min View Product paired with an SB325 automatic nozzle handles this volume without the fluid sitting stagnant in a long hose run.

Agricultural operations with less frequent AdBlue demand, maybe a handful of tractors and headers during season, are better served by a portable kit. The PIUSI AdBlue Portable Kit 12V DC, 34 L/min View Product runs off a ute battery and can be packed away between uses, which limits air exposure compared with a permanently rigged drum tap.

Workshops and mixed-fleet operations that need to track fluid use by vehicle or driver should look at the PIUSI AdBlue Bowser 240V AC with Integrated Fluids Management System View Product. The enclosed cabinet keeps the nozzle and meter out of the weather between shifts, which matters in humid coastal regions where moisture ingress accelerates AdBlue crystallisation.

Filters, Meters and Storage: The Rest of the AdBlue Crystallisation Picture

Even with a good pump and nozzle, crystals that form inside the storage tank or IBC will eventually reach the dispensing line if there's no filtration stage. The PIUSI 3D AdBlue Filter, 34 L/min View Product sits between the pump and nozzle and catches particulate before it reaches the meter turbine, which is one of the more sensitive components in the system.

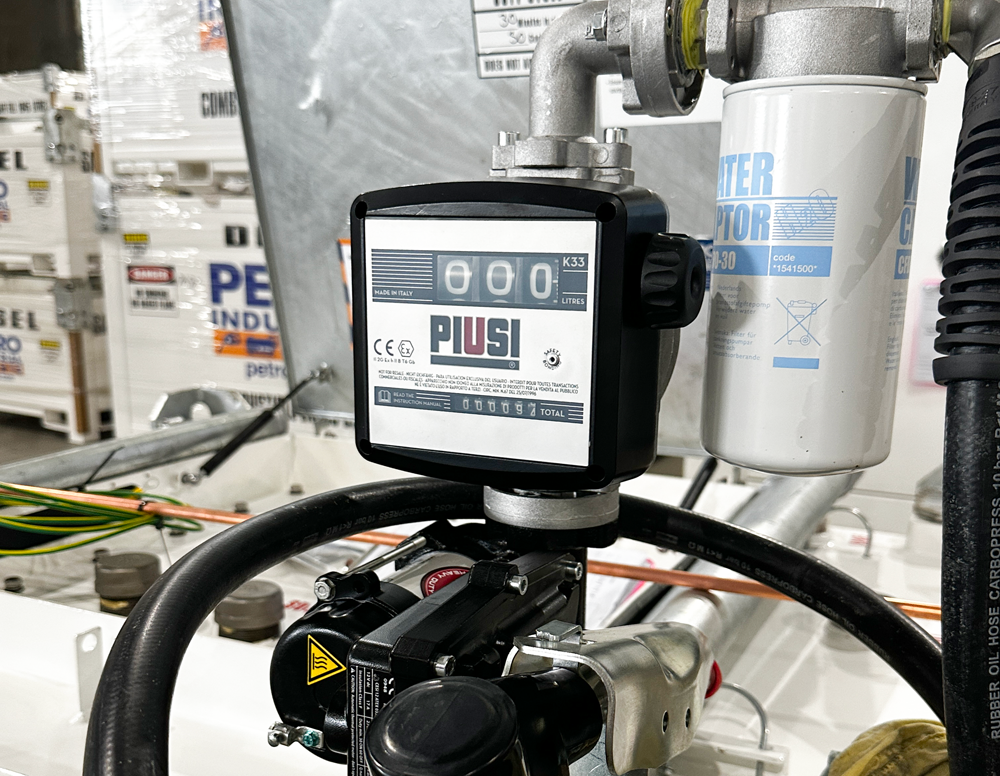

Meters are worth getting right too, since a pulse meter with a fouled turbine will start under-reading well before it fails outright. The PIUSI K24 Pulse Meter, 40 L/min View Product and the stainless PIUSI Turbinox Pulse Meter, 40 L/min View Product are both built for AdBlue service, and you can browse the full range of flow meters to match flow rate to your pump.

At the storage end, pairing your dispensing point with a PETRO Industrial self-bunded AdBlue tank fitted with an iPETRO tank gauge keeps the bulk fluid sealed and monitored, which is where most crystallisation actually starts if left unchecked. Hose reels also matter here: a PIUSI AdBlue Hose Reel, 8m View Product keeps the delivery hose coiled and off the ground rather than left exposed, and you can check the full hose reel range for longer runs. For sites tracking multiple users, the fuel monitoring systems collection covers the FMS and iPETRO gateways that log every dispense.

What to Buy

For fleet depots dispensing daily: PIUSI AdBlue Pump 240V AC, 34 L/min with the SB325 Automatic Nozzle, plus a PIUSI 3D Filter upstream.

For agricultural sites with seasonal demand: the 12V DC Portable AdBlue Kit, 34 L/min, stored away from weather between uses.

For workshops needing usage tracking across multiple drivers: the AdBlue Bowser with Integrated FMS, backed by PIUSI gauges on the storage tank.

For a complete on-site setup, pair any of the above with a PETRO Industrial self-bunded AdBlue tank and iPETRO monitoring so bulk storage, dispensing, and reporting all work together. You can also review the full range of PIUSI fuel pumps and nozzles to fit around your existing tank infrastructure.

Need help choosing the right setup? Contact the PIUSI Shop team or call 1300 987 789 for advice specific to your site.

FAQ

What causes AdBlue crystallisation in dispensing equipment?

AdBlue crystallisation occurs when the fluid is exposed to air, most often at an open nozzle spout, a manual trigger nozzle left wet, or a fill point without a dust cap. The crystals are abrasive and can damage pump seals, meter turbines and nozzle mechanisms over time.

Which PIUSI nozzle reduces AdBlue crystallisation risk best?

The PIUSI SB325 Automatic AdBlue Nozzle shuts off automatically at 34 L/min, which limits the time the spout sits wet and exposed to air compared with a manual trigger nozzle.

Do I need a filter if I already have an enclosed AdBlue pump cabinet?

Yes. Even sealed cabinets don't stop crystals forming inside bulk storage over time, so the PIUSI 3D AdBlue Filter protects the meter and nozzle downstream of the pump.

Can a standard AdBlue meter be damaged by crystallisation?

Yes. Crystal particulate can foul the turbine wheel in a pulse meter and cause under-reading before the meter fails completely. The stainless PIUSI Turbinox Pulse Meter is built with wetted parts suited to AdBlue service.

What's the difference between a portable and fixed AdBlue pump for crystallisation prevention?

A fixed 240V AC pump in a cabinet stays sealed between uses, which suits high-frequency sites. A 12V DC portable kit can be stored away from moisture and weather when not in use, which suits lower-frequency agricultural or seasonal demand.
