The most expensive diesel pump mistake in Australia has nothing to do with brand or flow rate. It happens when someone plugs a 12V pump into a 24V system and burns out the motor on day one. Understanding the difference between a 12V and 24V diesel pump before you buy saves money, downtime, and frustration.
The Fundamental Difference Between 12V and 24V Diesel Pumps
The voltage rating on a diesel transfer pump tells you what electrical system it is designed to run on. A 12V pump is built for 12-volt batteries. A 24V pump is built for 24-volt systems. The internal motor, wiring, and duty cycle are engineered for that specific voltage.
This is not a preference. It is a hard electrical requirement. You cannot swap one for the other without consequences.
A 12V pump draws higher current (amps) to achieve the same output as a 24V pump. A 24V pump draws less current for equivalent performance, which means thinner cables and less strain on the electrical system.
Both deliver similar flow rates across equivalent PIUSI models. The difference is not about power. It is about which electrical system your vehicle or installation uses.
When a 12V Diesel Pump Is the Right Choice
Most light vehicles in Australia run 12V electrical systems. That includes utes, 4WDs, light trucks, trailers, and passenger vehicles. If your vehicle has a standard single battery, you need a 12V diesel pump.
For portable setups mounted on ute trays or trailers, 12V is the default. The pump draws power directly from the vehicle battery or a dedicated auxiliary battery. No mains power required, making it ideal for remote farms, rural properties, and mobile refuelling.

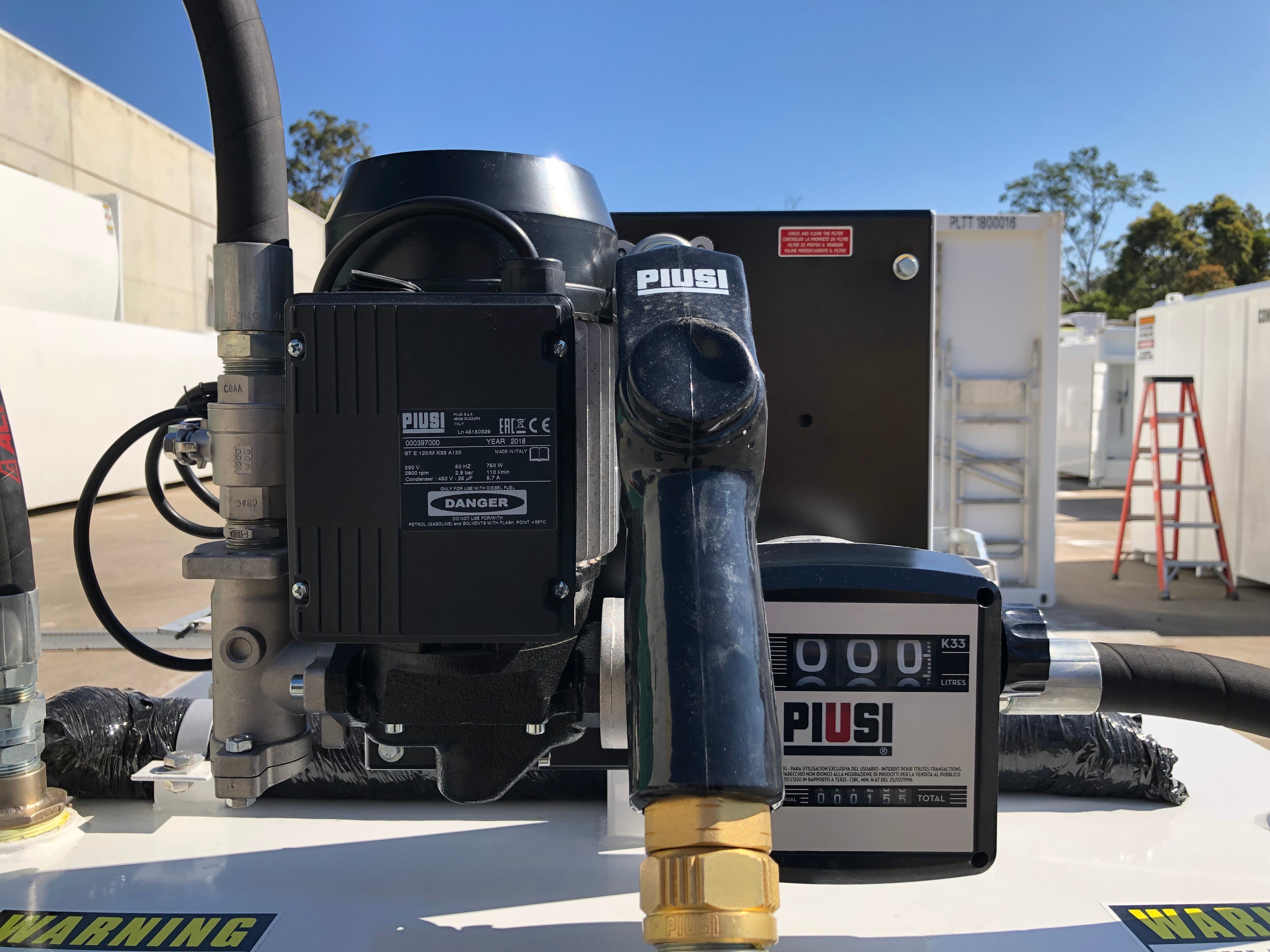

The PIUSI BiPump 85lpm is one of the highest-flow 12V pumps available. It suits operations that need fast refuelling from a vehicle-mounted setup without stepping up to 240V.
For lighter applications, the PIUSI PitStop 45lpm and PIUSI EX50 at 50lpm offer reliable performance for single-vehicle refuelling on farms, construction sites, and small workshops.
When a 24V Diesel Pump Is the Right Choice
Heavy vehicles and machinery in Australia typically run 24V electrical systems. This includes most trucks, semi-trailers, road trains, earthmoving equipment, generators, and mining vehicles.
If your vehicle starts with two batteries wired in series, it is almost certainly a 24V system. This is standard across Isuzu, Hino, Kenworth, Volvo, and CAT equipment commonly used in Australian transport and mining operations.
The PIUSI 24V BiPump 85lpm is the direct 24V equivalent of the popular 12V BiPump. Same flow rate, same build quality, engineered specifically for 24V truck and machinery installations.
For operations needing a complete portable kit, the PIUSI 24V Battery Kit 3000 at 50lpm comes pre-assembled with pump, hose, nozzle, and carrying case. It is built for truck-mounted refuelling where portability and speed both matter.
Can You Run a 12V Pump on a 24V System or Vice Versa?
This is the single most common cause of DC diesel pump failure across Australian worksites. The short answer is no. Do not do it.
Connecting a 12V pump to a 24V system sends double the designed voltage through the motor. The windings overheat almost immediately. In most cases the pump runs for a few seconds at dangerously high speed before the motor burns out permanently. This is not covered under warranty.
Running a 24V pump on a 12V system is less destructive but equally useless. The pump will either fail to start or spin too slowly to transfer fuel. You get a trickle instead of flow, and the motor strains under insufficient voltage, shortening its lifespan.
Voltage converters exist, but they add cost, complexity, and another point of failure. For permanent installations, it is always better to buy the correct voltage pump from the start. Check your vehicle's electrical system before ordering. If you are unsure, count the batteries: one battery is typically 12V, two batteries wired together are typically 24V.
Side-by-Side Comparison: 12V vs 24V PIUSI Pumps
Flow rates across both voltage ranges are nearly identical in the PIUSI lineup. The 12V BiPump and the 24V BiPump both deliver 85 litres per minute. The EX50 and Battery Kit 3000 both deliver 50lpm in their respective voltages. Performance does not change with voltage.
The difference shows up in application context. 12V pumps dominate the ute, trailer, and light vehicle market. 24V pumps dominate the trucking, mining, and heavy equipment market. Choose based on what you are mounting the pump to, not on which flow rate sounds better.
Cable length matters more on 12V installations. Because 12V pumps draw higher current, voltage drop over long cable runs becomes a real issue. Keep cables as short as practical and use the correct gauge wire. The PIUSI BiPump with 4m cable is available in both 12V and 24V versions for installations requiring extra reach.
Price positioning is similar across both voltages for equivalent models. You are not paying more for 24V. The cost difference between a 12V BiPump and a 24V BiPump is minimal. Budget should not drive the voltage decision. Electrical compatibility should.
Accessories That Work With Both Voltages
The good news is that most PIUSI accessories are voltage-independent. Flow meters, manual and automatic nozzles, hose reels, and diesel filters all connect to the fuel line, not the electrical system. They work identically with 12V and 24V pumps.
This means you can upgrade or swap your pump voltage in the future without replacing your entire fuel system. Your meter, nozzle, filter, and hose reel stay the same. Only the pump and its wiring change.
For fleet operators wanting electronic fuel tracking, PIUSI fuel management systems are available in 240V AC configurations for fixed-site installations. For mobile 12V or 24V setups, standalone flow meters provide per-transaction data without needing a full management system. Contact our team to confirm compatibility for your setup.
Frequently Asked Questions
How do I tell if my vehicle is 12V or 24V?
Open the bonnet or check the battery compartment. If you see one battery, the system is almost certainly 12V. If you see two batteries connected in series with a cable between them, it is a 24V system. Your vehicle manual will also confirm the electrical system voltage.
Will a 12V diesel pump drain my vehicle battery?
It depends on usage. A 12V pump running for 15 to 20 minutes per fill will not significantly drain a healthy vehicle battery. For extended or frequent use, install a dedicated auxiliary battery. This protects your starting battery and avoids being stranded on-site with a flat battery.
Is a 24V diesel pump more powerful than a 12V?
No. Equivalent PIUSI models deliver the same flow rate across both voltages. The PIUSI BiPump produces 85lpm in both 12V and 24V. The 24V version draws less current to achieve the same result, which is an electrical efficiency benefit rather than a power advantage.
Can I use a voltage converter to run a 12V pump on my 24V truck?
Technically yes, a 24V-to-12V converter will power the pump. However, converters add cost, introduce a failure point, and need to be rated for the pump's full current draw. For permanent installations, buying the correct 24V pump is more reliable and usually costs the same as the 12V version plus a converter.
What cable size should I use for a 12V diesel pump?
Most PIUSI 12V pumps drawing 15 to 25 amps require a minimum of 6mm2 cable for runs up to 3 metres. For longer runs, step up to 10mm2 to avoid voltage drop. Always include an inline fuse rated to the pump's maximum current draw. Refer to the pump's installation manual for exact specifications.
