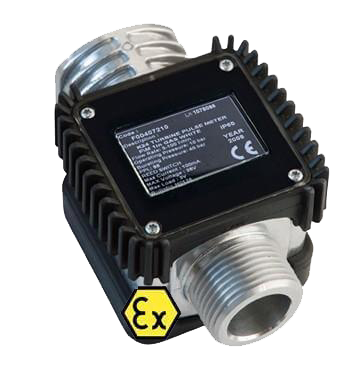

PIUSI K24 ATEX/IECEX 25 Pulse Meter

PIUSI K24 ATEX/IECEX 25 Pulse Meter

PIUSI K24 ATEX/IECEX 25 Pulse Meter   The PIUSI K24 ATEX, specifically designed to be compliant with ATEX/IECEx requirements, is manufactured using high-quality materials compatible with ga- soline, kerosene and diesel to be used in potentially explosive areas. New meter...

$280.50
  • Category: Flow Meters

PIUSI K24 ATEX/IECEX 25 Pulse Meter



The PIUSI K24 ATEX, specifically designed to be compliant with ATEX/IECEx requirements, is manufactured using high-quality materials compatible with ga- soline, kerosene and diesel to be used in potentially explosive areas.

  • New meter for the accurate measurement of the quantity dispensed
  • meets the ATEX/IECEx requirements related to the use of materials in potentially explosive atmospheres.
  • Digital pulse meter for low-viscosity fluids.
  • The ideal instrument for controlling fluid dispensing.
  • Sturdy casing and a sealed electronic card make it suitable for use in practically all conditions.
  • Aluminium body.
  • Impulse-type signals:  single channel, reed switch.
  • Repeatability 0.3 %.
  • Loss of pressure < 0.03 bar at 120 l/min.
  • 7-120lpm
  • Accuracy+/- 1%,
  • BSP Male / Female Thread,
  • 92 pulses per L,
  • 20 bar pressure rating.
  • UL approved model available



ATEX / IECEX - Approval Classification

  • Group - II
  • Category - 2
  • Type of Explosive Atmosphere - G
  • Permanent Prefix - Ex
  • Protection Method - ia
  • Gas Class - IIB
  • Temperature Class - T4
  • Equipment Protection Level - Tb



    Order online with Piusi Shop and get free shipping Australia-wide today!

      Downloads

         Product Data Sheet
