Description

PIUSI AC Viscomat Pump range

VISCOMAT GEAR

The Viscomat Gear is an advanced oil transfer pump available in both single-phase and three-phase models. This pump is designed for applications that require a high suction capacity to handle fluids with medium to high viscosity.

EXCEPTIONAL PERFORMANCE

Transferring lubricating oil, which is more viscous than many other fluids, demands greater force. The Viscomat Gear system excels in this area with its self-priming gear pump. It ensures a consistent flow rate and stability, effectively handling viscosities up to 2000 cSt and achieving a flow rate of up to 14 liters per minute. The pump's continuous operation supports a high suction capacity with pressures reaching up to 25 bar. Its internal profile gear pump is a cutting-edge solution, tailored to meet the varied requirements of pumping lubricants in the automotive industry.

DEPENDABLE

Featuring a sintered steel rotor with durable gears, the Viscomat Gear pump ensures robust performance during oil transfer.

For those seeking a high-performance oil transfer pump, the Viscomat Gear, with its quality engineering by PIUSI, is an excellent choice.

The range consists of 3 options

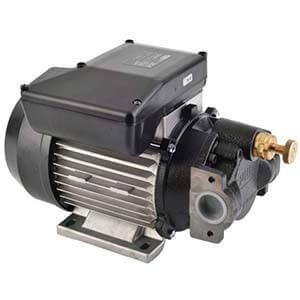

  • PUMP 240V AC PIUSI 50lpm Viscomat Vane Pump F00303M00 DN25 Scr BSP Female Threads
  • Electric vane pump for pumping fluids of viscosity up to 500 CST.
  • Continuous operations, with elevated suction, up to 6 bar pressures. Noise levels below 70 dB.
  • Asynchronous, closed, self-ventilating AC motor available in different voltages and frequencies.
  • Optional closed-delivery operations thanks to an inbuilt adjustable by-pass in the pump body.
  • Sintered steel rotors with resin vanes.
  • Seal on motor shaft accessible from the pump side.
  • The Piusi Viscomat 90 Vane oil transfer pump is an ideal solution for the transfer of large amounts of oil at medium pressure from one tank to another.
  • This Piusi pump also maintains good flow rates when used in high-pressure systems, where the oil pump supplies hose reels for fixed oil dispensing.
  • These oil transfer pumps are reliable and high-quality pumps, which have a high suction, smooth flow, and operate at less than 70dB.
  • Self-Priming Viscomat Oil Transfer Pump
  • Incorporated Bypass Valve
  • Flow rate: 50ltr per min
  • Viscosity up to 500 CST
  • Maximum fluid temperature of 70ºc
  • Continuous Running|
  • 1” threaded connections
  • Viton lip seal
  • Protection Grade: IP55
  • Available in 230v/400v
