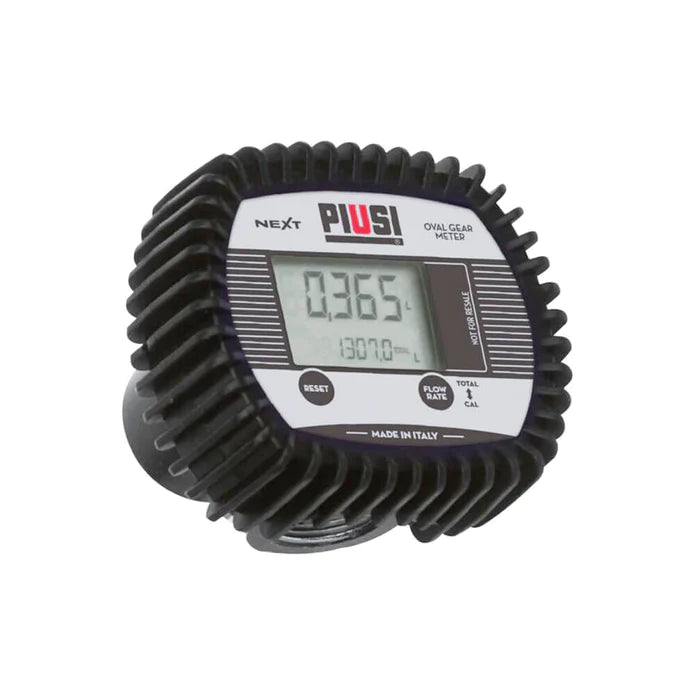

PIUSI Lubrication Digital display NEXT/2 Flow Meter

PIUSI Lubrication Digital display NEXT/2 Flow Meter

NEXT/2 is an oval gear electronic flow meters in acetal resin for controlling non-commercial dispensing of low, medium and high viscosity fluids including Lubricating oils and other special fluids compatible with construction materials.

FEATURES

• Body with aluminium measuring chamber.
• 5-digit partial total (h=11.5 mm) with floating point from 0.001 to 999.99
• 8-digit non-resettable total (h=5 mm) from 1 to 99999999.
• Resettable total.
• Repeatability 0.2%
• Loss of pressure <0.5 bar at maximum flow rate
• Flow rate up to 60 l/min
• Accuracy +/- 0.5%
• Maximum operating pressure 70 bar
• Bursting pressure: 140 bar

Order online with Piusi Shop and get free shipping Australia-wide today!

Downloads

Product Data Sheet
