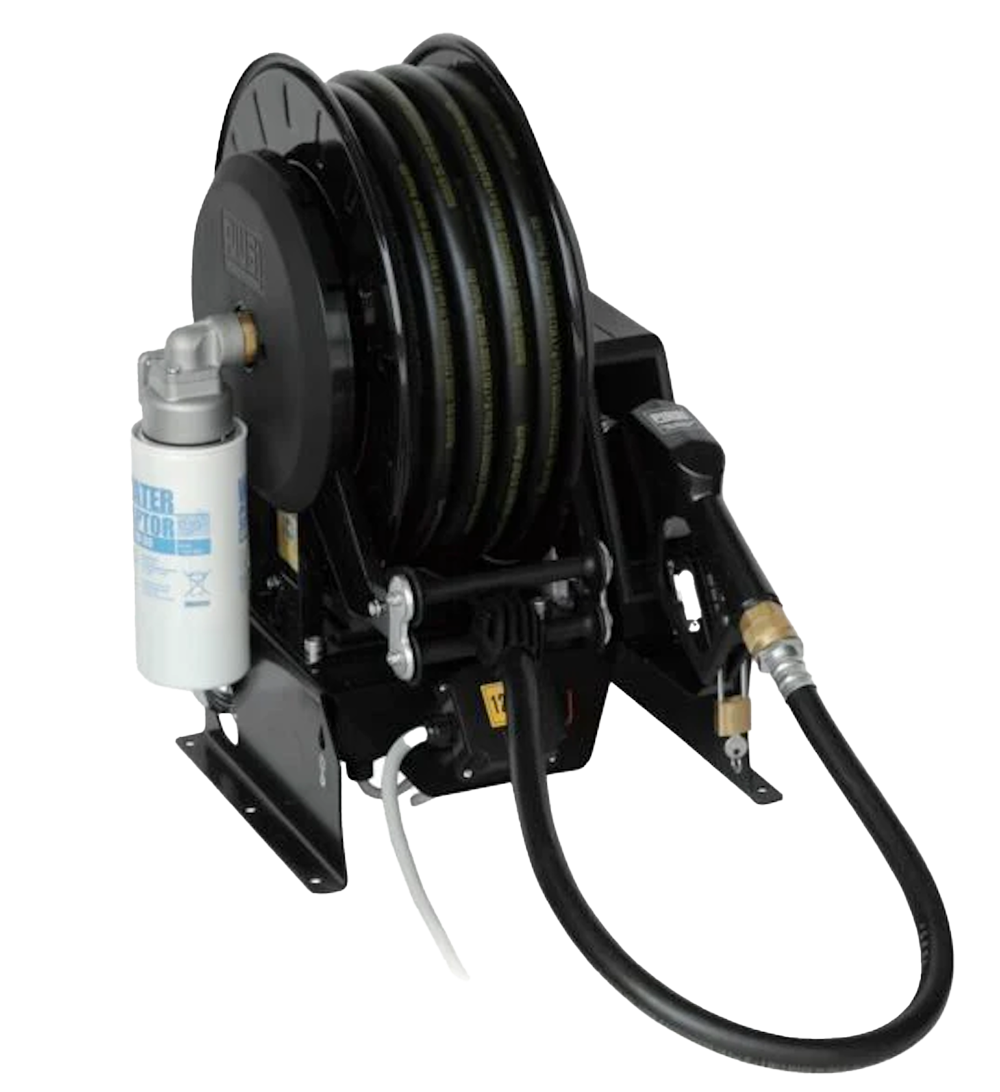

PIUSI Pitstop is a diesel dispenser that can be installed directly on fixed or mobile tanks on vehicles.
The diesel transfer unit is a complete solution for those who are looking for a ready-to-install transfer system. The PIUSI Pitstop diesel transfer system consists of a 14-metre 3/4"-14 m (1" - 10 m) hose, an automatic nozzle, dual self-priming rotary electric vane pumps, equipped with a bypass valve and with a guaranteed flow rate of up to 45 l/min and supply. The feature that makes the PIUSI Pitstop diesel dispenser unique is the integrated automatic reel for easier use. The possibility to adjust the adjustable arms allows you to calibrate the end stop hose for fast and safe use.
STURDY AND HANDY COMPACT STRUCTURE
The automatic reel, the two DC pumps and the automatic nozzle are integrated in a sturdy and handy compact structure in supporting metal. Simple to install, PIUSI Pitstop adapts to any type of application.
The integrated water absorption cartridge filter is an important guarantee for the protection of engines that use diesel fuel supplied by the diesel dispenser. The filter guarantees the quality of the transferred fuel free from impurities
Its use is indicated to complete mobile or fixed tanks in agricultural, construction, automotive or naval applications.
- READY TO INSTALL
- STURDY STRUCTURE
Flow Rate: 45 Lpm
Pump: BP 3000
Duty Cycle: 30min
Nozzle: A60 Auto
Hose: 14m - 3/4”
