How to Set Up a Complete Fuel Dispensing Station for Your Fleet

Choosing the right equipment for a dedicated refuelling station on your site sounds straightforward until you factor in flow rate requirements, power supply, and the need for accurate dispensing records. Whether you are managing a fleet of trucks, farm machinery, or construction vehicles, a well-planned station saves time and prevents fuel loss. This guide walks you through the key components, with a focus on selecting the right pump and flow meters to match your daily demand.

You will learn how to size your pump, why flow meters are the backbone of fuel accountability, and which PIUSI products fit specific applications. By the end you will know exactly what goes into a complete on-site refuelling setup.

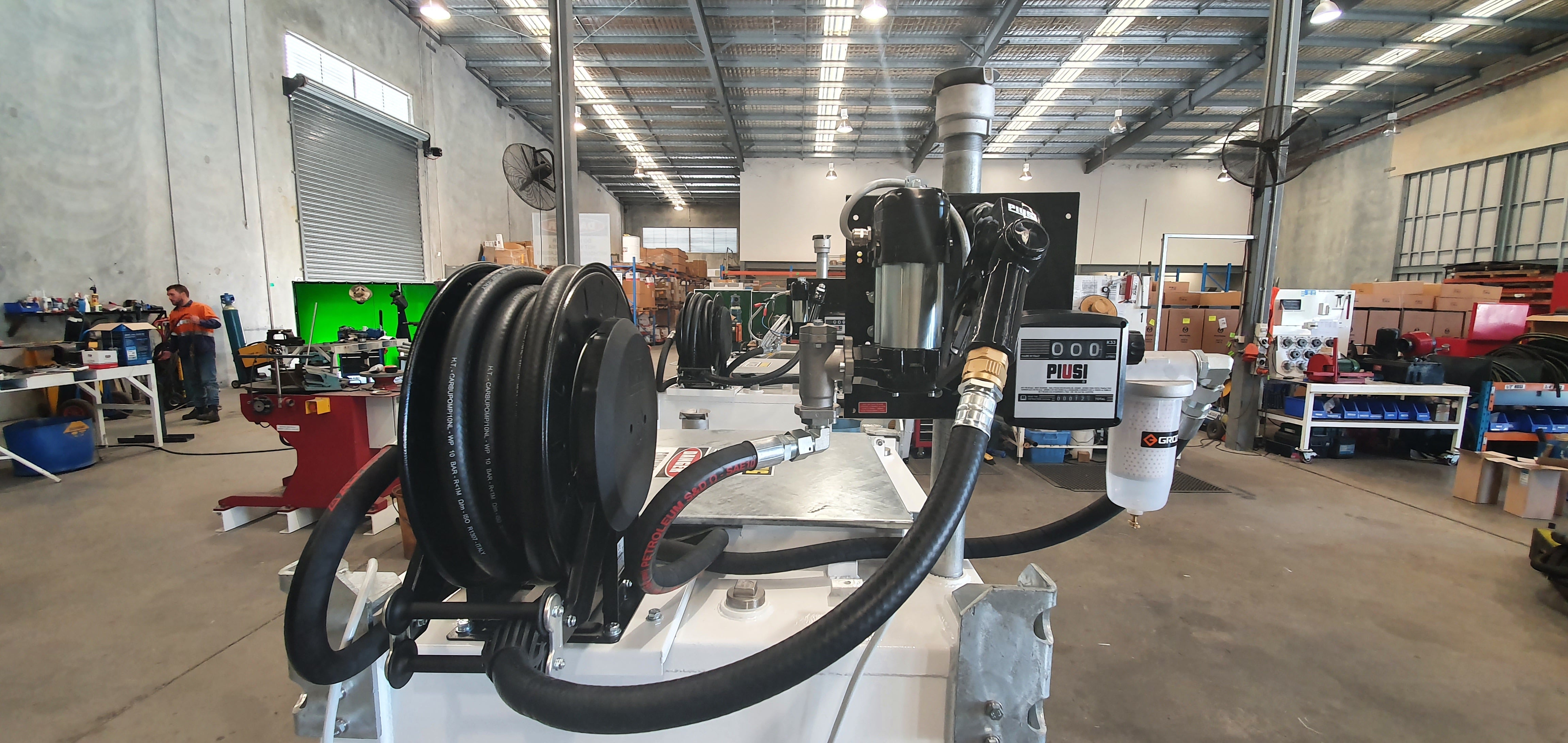

Understanding the Core Components of a Fuel Dispensing Station

A complete dispensing station is more than a pump and a nozzle. You need a reliable power source, a transfer pump rated for your volume, a flow meter for accuracy, a hose reel for safe handling, and a nozzle that matches your fuel type. Each component must work together without bottlenecks.

The pump is the heart of the system. PIUSI offers 12V DC models like the BP3000 (50 L/min self-priming vane pump) for mobile use, and 240V AC units like the E120 (100 L/min) for fixed installations. For higher throughput, the ST200 delivers 200 L/min for heavy refuelling depots.

The flow meter sits between the pump and nozzle. It records every litre dispensed, giving you data for billing, driver accountability, and inventory control. PIUSI’s range of flow meters includes mechanical and pulse-output types, from the compact K33 (50 L/min) to the industrial K700M (70 L/min).

Nozzles and hose reels complete the chain. Automatic nozzles like the A120 (120 L/min) shut off cleanly, while spring-rewind hose reels keep the workspace tidy.

Browse the full range of 12V diesel pumps to see options for mobile and fixed setups.

Why Flow Meters Are Critical for Accuracy and Control

Flow meters are the single most important component for managing fuel costs. Without one, you have no way to verify that your drivers, operators, or contractors are using fuel as intended. A quality flow meter gives you litres dispensed per transaction, total volume, and sometimes rate of flow.

PIUSI flow meters are built for diesel, petrol, AdBlue, and similar liquids. The K33 mechanical meter is a popular choice for workshops and small fleets, rated at 50 L/min with a resettable totaliser. For higher volumes, the K44 handles 90 L/min and includes a litre counter and built-in pulse output for remote monitoring. The K24A metal-body meter is ATEX certified for hazardous areas.

Pulse meters like the K400-15 or K600-4-40 integrate directly with fuel management systems (FMS) such as the PIUSI MCbox or iPETRO Lite. These pulse outputs let you track every transaction through a controller, automatically recording fuel usage against a driver or vehicle key.

A reliable flow meter also helps you comply with trade measurement requirements and reduces the risk of over or under-filling.

Explore the full range of PIUSI flow meters to find the right model for your flow rate and application.

Choosing the Right Pump for Your Fleet’s Demand

The pump you choose depends on your daily fill volume, duty cycle, and power availability. For a farm or small workshop, a 12V DC pump like the PIUSI BP3000 (50 L/min) is ideal if you have a battery or solar setup. It is self-priming and comes with a battery kit option for portable use.

For medium-volume sites with mains power, 240V AC pumps are the standard. The PIUSI Panther 56 delivers 56 L/min, suitable for up to 30,000 litres per day. The Cube 70 (70 L/min) and Cube 90 (90 L/min) come in pre-configured kits with meter, hose, and nozzle.

High-volume depots need the E120 (100 L/min) or the ST200 (200 L/min). The ST200 is a suction pump that can draw fuel from underground or aboveground tanks.

Consider duty cycle: PIUSI pumps are rated for continuous or intermittent use. The BP3000 is rated for 30 minutes on, 30 off. The Panther 56 runs continuously at 56 L/min.

View the PIUSI BP3000 12V pump and the Panther 56 240V pump for direct comparison.

Comparison Table: Common PIUSI Pumps

Integrating Flow Meters with Fuel Management Systems

For complete control, pair your flow meter with a fuel management system (FMS). The PIUSI MCbox or iPETRO Lite accepts pulse inputs from compatible meters and assigns each transaction to a user key. This eliminates manual logging and reduces theft.

The K44 flow meter, for example, outputs 100 pulses per litre. When wired to an MCbox controller, every fill is recorded with date, time, driver ID, and volume. You can download the data via USB or cloud depending on the system.

If you already have a tank gauge from PIUSI (like the Ocio 4‑20mA), you can monitor stock levels alongside dispensing data. For a fully integrated setup, consider a self-bunded tank from PETRO Industrial with a built-in gauge and pump connection.

View PIUSI fuel monitoring systems to see how to connect flow meters to an FMS controller.

Setting Up for Different Applications

Agriculture: Mobile refuelling is common. A 12V BP3000 with a battery kit, K33 flow meter, and automatic nozzle on a hose reel suits paddock-side fills. Pair with a PETRO Industrial self-bunded tank for a complete mobile unit.

Transport and Logistics: Fixed depots handling 50,000+ litres per week need the E120 or ST200 pump, a K44 or K700M flow meter for high flow, and an FMS for driver tracking. Use heavy-duty hose reels (e.g., 25mm ID x 15m) and automatic nozzles.

Construction and Mining: Rugged conditions demand ATEX-rated components. The PIUSI Ex140 pump (140 L/min) and K24A ATEX flow meter are suitable for diesel and gasoline in hazardous zones. Use reinforced hose reels.

Workshops: Low volume, high convenience. A Panther 56 pump with a K33 meter and manual nozzle on a spring-rewind hose reel is compact and cost-effective.

Browse PIUSI nozzles for automatic and manual options tailored to diesel and AdBlue. See hose reels for spring-rewind and manual-rewind models.

What to Buy

Your choice depends on fleet size and site setup:

• Small fleet (1–10 vehicles): PIUSI BP3000 battery kit + K33 flow meter + A60 automatic nozzle + spring-rewind hose reel (19mm x 15m).

• Medium fleet (10–30 vehicles): PIUSI Cube 70 kit (includes K33 meter, hose, nozzle) – a complete plug-and-play station.

• Large fleet or depot (30+ vehicles): PIUSI E120 or ST200 pump + K44 flow meter + MCbox FMS + heavy-duty hose reel + A120 nozzle.

• Hazardous area: PIUSI Ex140 or Ex100 pump + K24A ATEX pulse meter + ATEX-rated hose and nozzle.

For the tank, consider a PETRO Industrial self-bunded or aboveground tank with an Ocio gauge to complete the system.

Need help choosing the right setup? Contact the PIUSI Shop team on 1300 987 789 for advice on your specific site requirements.

FAQ

What size flow meter do I need for a 100 L/min pump?

You need a flow meter rated for at least that flow rate. The PIUSI K44 handles 90 L/min, so for 100 L/min use the K700M (70 L/min – closer to max) or the K24A (100 L/min model). Always match meter capacity to pump output.

Can I use a mechanical flow meter with a fuel management system?

Yes, but you need a pulse output model. The K33 is mechanical with no pulse output. Use the K44 or K24A pulse meter for integration with PIUSI MCbox or iPETRO systems.

Do PIUSI flow meters work with AdBlue?

Yes. PIUSI has dedicated AdBlue flow meters such as the K24 (40 L/min) and the Turbinox (40 L/min) made from stainless steel and compatible polymers. Standard diesel meters may corrode with AdBlue.

What is the difference between a pulse meter and a mechanical meter?

A mechanical meter displays volume on a dial or digital screen. A pulse meter sends an electrical signal (pulses per litre) to an external controller for remote monitoring and data logging. Pulse meters are used in FMS setups.

Do I need an ATEX-rated flow meter for a diesel refuelling station?

Not always. ATEX certification is required if the meter is installed in a classified hazardous zone (e.g., near tank vents or in enclosed pits). For general outdoor use above ground, a standard PIUSI K33 or K44 is sufficient. Check AS1940 guidelines.
