PIUSI K24A METER M/F 1” BSP ATEX/IECEX - Diesel, Gasoline, Kerosene - Litre

PIUSI K24A METER M/F 1” BSP ATEX/IECEX - Diesel, Gasoline, Kerosene - Litre

PIUSI K24 ATEX/IECEx   PIUSI K24 ATEX/IECEx is the new flow meter for non-commercial use, for measuring the dispensed quantity of Gasoline, kerosene and diesel. ATEX/IECEx QUALITY The digital flow meter for Gasoline, kerosene and diesel meets the ATEX/IECEx requirementsf...

$484.00
  • Category: Flow Meters

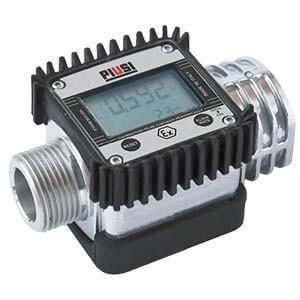

PIUSI K24 ATEX/IECEx



PIUSI K24 ATEX/IECEx is the new flow meter for non-commercial use, for measuring the dispensed quantity of Gasoline, kerosene and diesel.


ATEX/IECEx QUALITY

The digital flow meter for Gasoline, kerosene and diesel meets the ATEX/IECEx requirementsf or the use of materials in potentially explosive atmospheres. K24 ATEX/IECEx has a sturdy aluminum body and a sealed electronic board, making it suitable for use in any working condition.

Easy to install, in line or at the end of the dispensing pipe, it has a display that can be applied in various positions to facilitate reading. It is the ideal tool for managing the fluid dispensed.


MAIN FEATURES

  • K24 ATEX/IECEx also includes these characteristics:
  • Pulse signal type: single-channel, reed
  • switch. Electronic board with LCD display:
  • Partial 5 digits from 0.1 to 99999, Total 6 digits 1 to 999999
  • Resettable total available.
  • Flow rate indication.
  • Repeatability 0.3%.
  • Pressure drop < 0.03 bar at 120 l/min
  • Can be calibrated.

FEATURES

  • BURSTING PRESSURE 100 BAR
  • LCD DISPLAY
  • FLOW-RATE INDICATION
  • EASY TO CALIBRATE
  • UL VERSION AVAILABLE

Flow Rate: 7-120 Lpm
Max Operating Pressure: 20Bar, 300Psi
Accuracy: ±1%
Repeatibility: 0,3%


MATERIALS

  • BODY: ALUMINIUM
  • GEARS: TECHNOPOLYMER

Order online with Piusi Shop and get free shipping Australia-wide today!


Downloads

     Product Data Sheet
